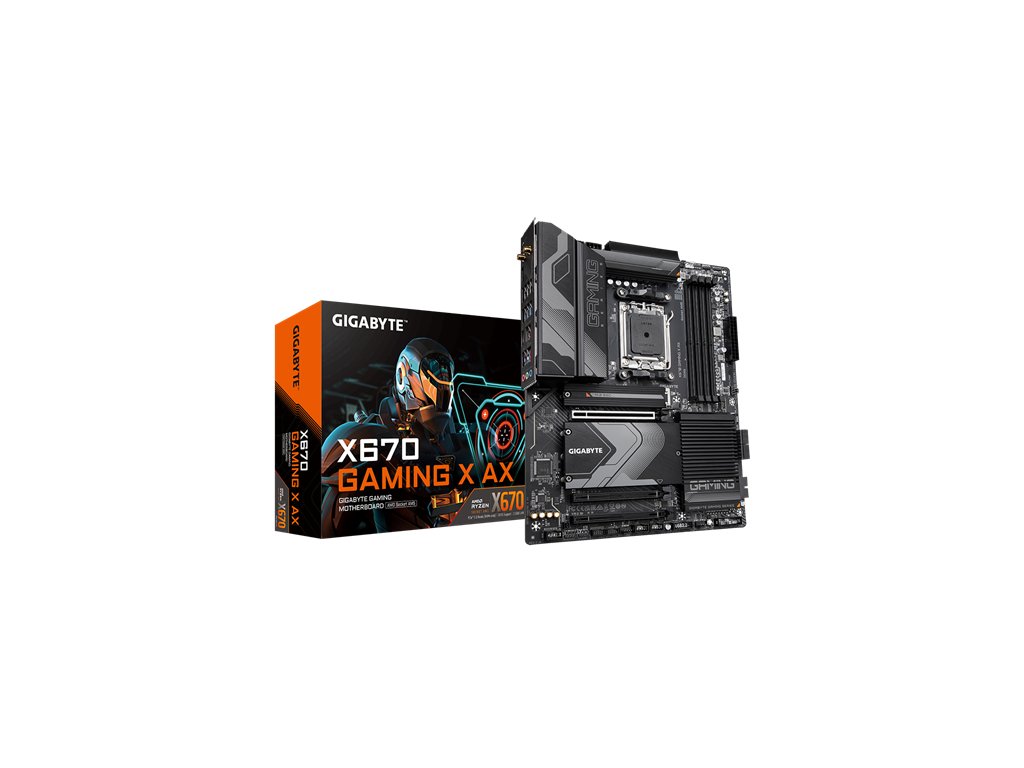

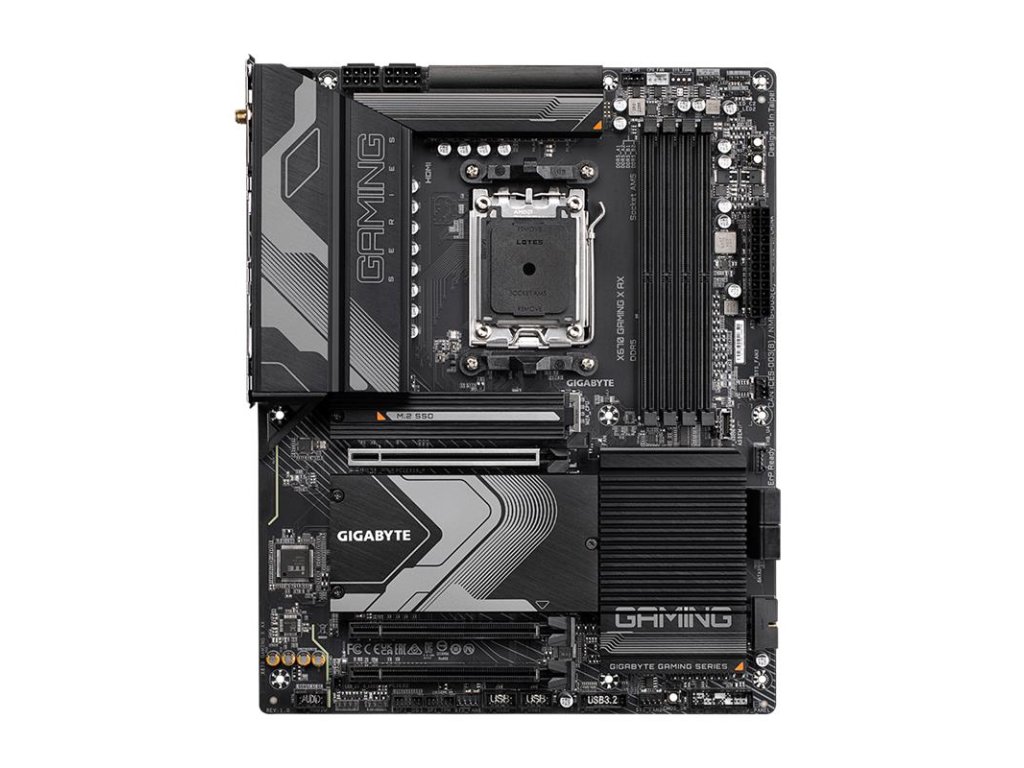

GIGABYTE X670 GAMING X AX/AM5/ATX Základná doska

Podrobný popis

Chipset: AMD X670

Rozměrový formát: ATX Form Factor (30.5cm x 24.4cm)

Podpora pro procesory: AMD Ryzen 7000 Series Processors

Patice procesoru: AM5

Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture

Podpora pro paměti: DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s

Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)

Podpora pro paměti typu: non-ECC, XMP

Grafické výstupy: (na základě procesoru) *1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz

Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel

Síťová karta: *Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2

Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) *1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

RAID řadič: RAID 0, RAID 1, and RAID 10

SATA: 4 x SATA 6Gb/s connectors

M.2: 4 x M.2 Socket 3 connectors

USB: *

Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 1 headers *2 x USB 2.0/1.1 headers *

Externí: *6 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *2 x USB 3.2 Gen 2 Type-A ports (red) *1 x USB Type-C port, with USB 3.2 Gen 2x2 support

Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x CPU fan header *1 x water cooling CPU fan header *3 x system fan headers *1 x CPU cooler LED strip/RGB LED strip header *2 x addressable LED strip headers *2 x RGB LED strip headers *4 x SATA 6Gb/s connectors *4 x M.2 Socket 3 connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 1 headers *2 x USB 2.0/1.1 headers *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x power button *1 x reset button *1 x Clear CMOS button *1 x reset jumper *1 x Clear CMOS jumper

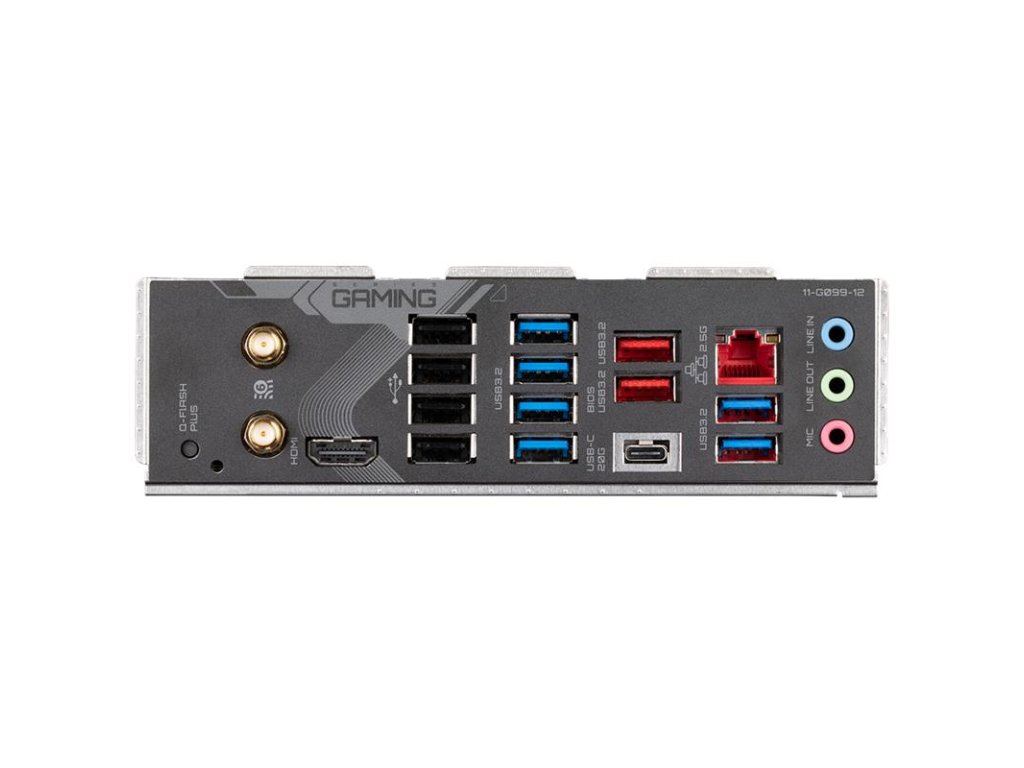

Externí porty: *1 x Q-Flash Plus button *2 x SMA antenna connectors (2T2R) *1 x HDMI port *6 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *2 x USB 3.2 Gen 2 Type-A ports (red) *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *1 x RJ-45 port *3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/X670-GAMING-X-AX-rev-10#kf
