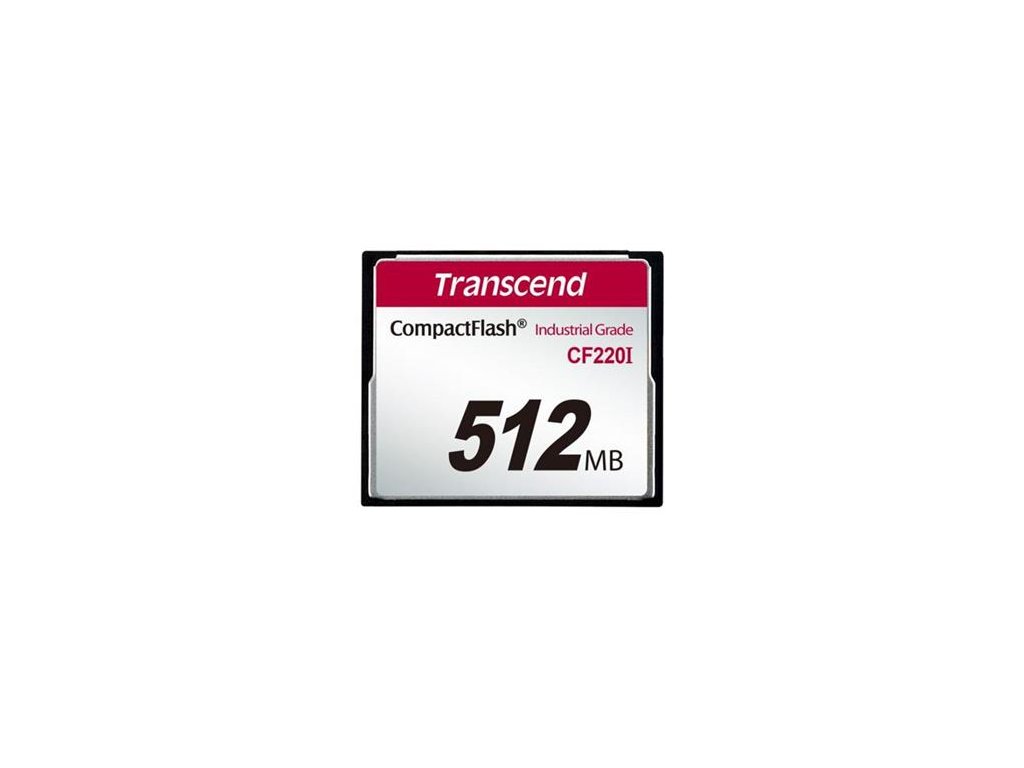

Transcend 512MB INDUSTRIAL TEMP CF220I CF CARD (SLC) Fixed disk and UDMA5

Podrobný popis

Ruggedized and featuring excellent temperature flexibility while delivering top performance, Transcend's CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications. Firmware Features True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6 True IDE Mode: Fixed Disk (Default) Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode Built-in BCH ECC (Error Correction Code) functionality Static Data Refresh Early Retirement Erase Count Monitoring Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices Wear-Leveling Security Command Appearance Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13") Pin Count 50 pin Form Factor Compact flash card Storage Flash Type SLC NAND flash Capacity 512 MB/ Operating Environment Operating Voltage 3.3V±5% 5V±10% Operating Temperature Wide Temp.-40°C (-40°F) ~ 85°C (185°F) Storage Temperature -55°C (-67°F) ~ 100°C (212°F) Humidity 0% ~ 95% Shock 1500 G, 0.5 ms, 3 axis Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency) Power Power Consumption (Max.) 0.54 watt(s) Performance Read Speed (Max.) up to 56 MB/s Write Speed (Max.) up to 44 MB/s Mean Time Between Failures (MTBF) 3,000,000 hour(s) Note Speed may vary due to host hardware, software, usage, and storage capacity.
