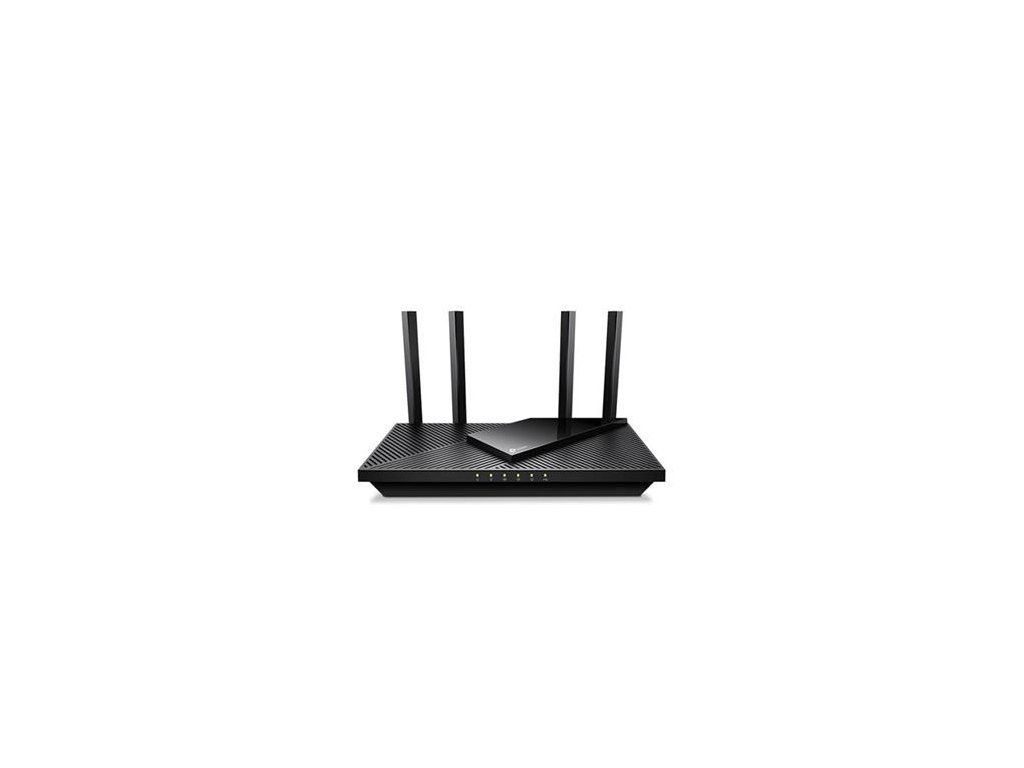

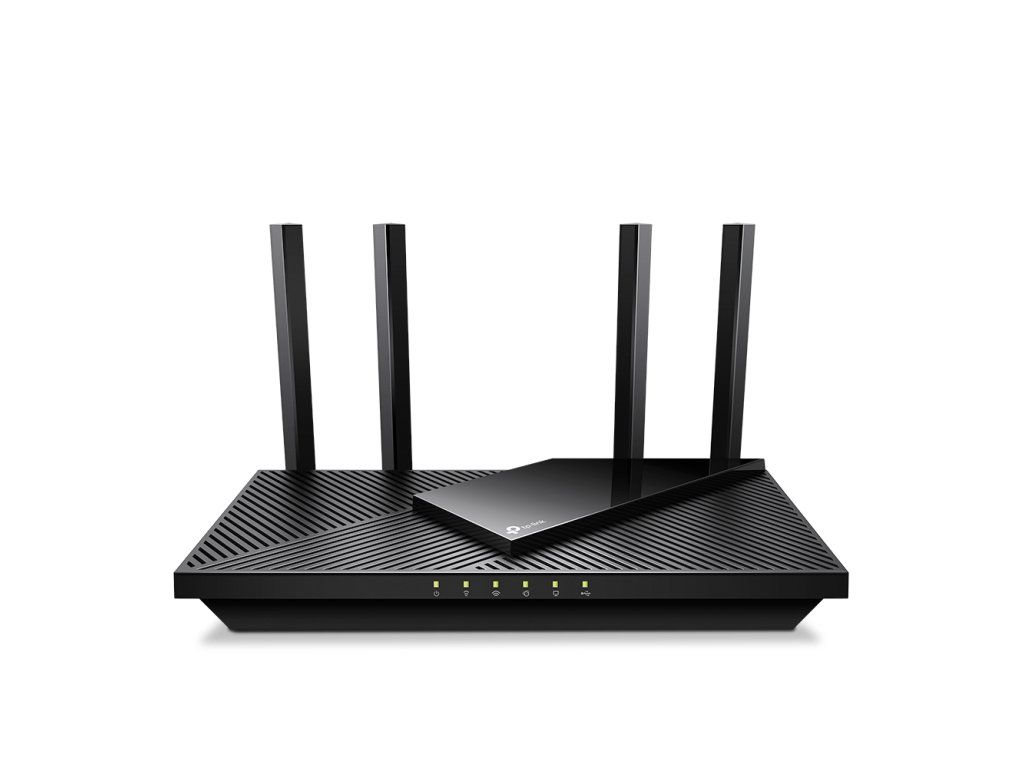

TP-Link Archer AX55 Pro, AX3000 WiFi6 router

Podrobný popis

WIRELESS Standards Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX3000 • 5 GHz: 2402 Mbps (802.11ax, HE160) • 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 3 Bedroom Houses• 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range • High-Power FEM Improves transmission power to strengthen signal coverage WiFi Capacity High• Dual-Band Allocate devices to different bands for optimal performance • OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients • Airtime Fairness Improves network efficiency by limiting excessive occupation • DFS Access an extra band to reduce congestion • 4 Streams Connect your devices to more bandwidth Working Modes • Router Mode • Access Point Mode HARDWARE Ethernet Ports • 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports USB Support 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server Buttons Wi-Fi/WPS Button Power On/Off Button Reset Button Power • 12 V/ 2 A (US Version) • 12 V/ 1.5 A (EU Version) SECURITY WiFi Encryption • WPA3* • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x) Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield SecurityReal-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network VPN Server • OpenVPN • PPTP • L2TP VPN Client • OpenVPN • PPTP • L2TP SOFTWARE Protocols • IPv4 • IPv6 Service Kits HomeShield Learn More> OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> Parental Controls HomeShield Parental Controls• Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports WAN Types • Dynamic IP • Static IP • PPPoE • PPTP • L2TP Quality of Service QoS by Device Cloud Service • Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS NAT Forwarding • Port Forwarding • Port Triggering • DMZ • UPnP IPTV • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN DHCP • Address Reservation • DHCP Client List • Server DDNS • TP-Link • NO-IP • DynDNS Management • Tether App • Webpage Check Web Emulator> OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0?~40? (32? ~104?) Operating Humidity: 10%~90% non-condensing TEST DATA WiFi Transmission Power • CE: <20dBm(2.4GHz) <23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz) <30dBm (5.47GHz~5.725GHz) • FCC: <30dBm (2.4GHz) <30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz) <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz) WiFi Reception Sensitivity • 2.4 GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm • 5 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm, 11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm PHYSICAL Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) Package Contents • Wi-Fi Router Archer AX55 Pro • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
