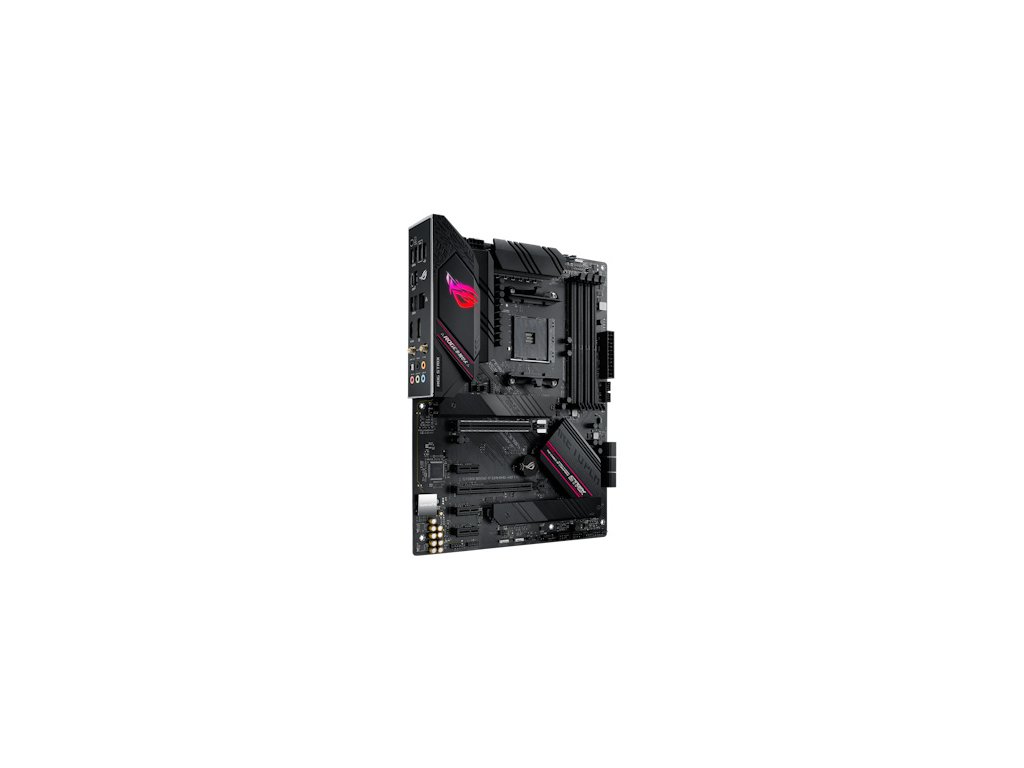

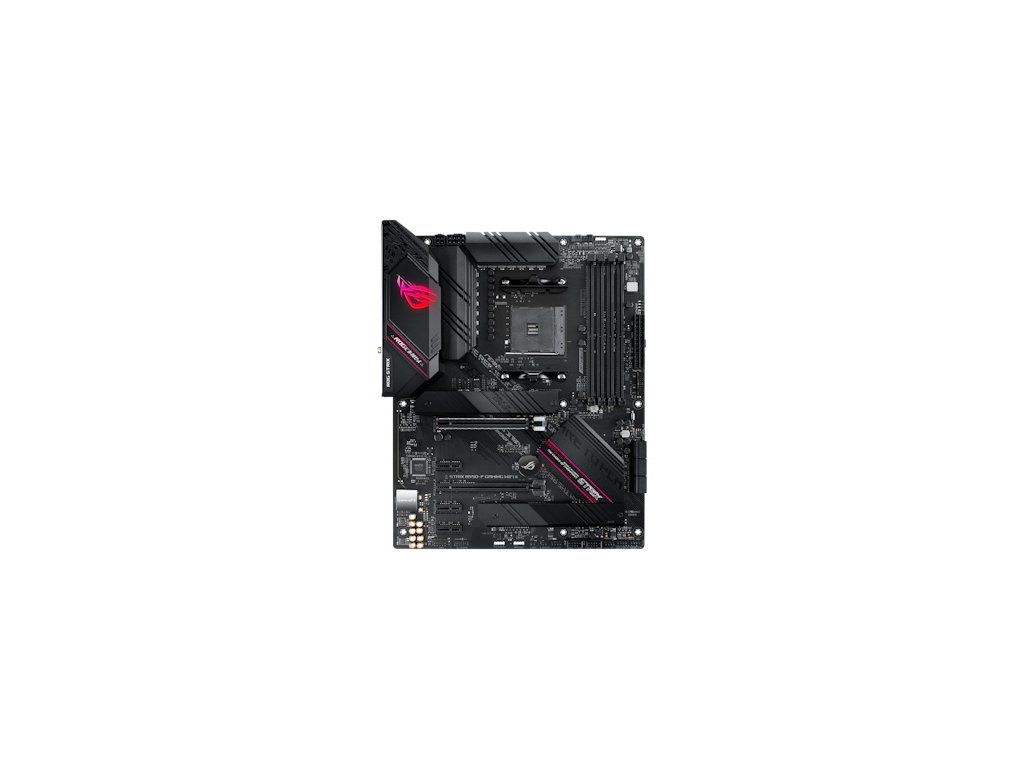

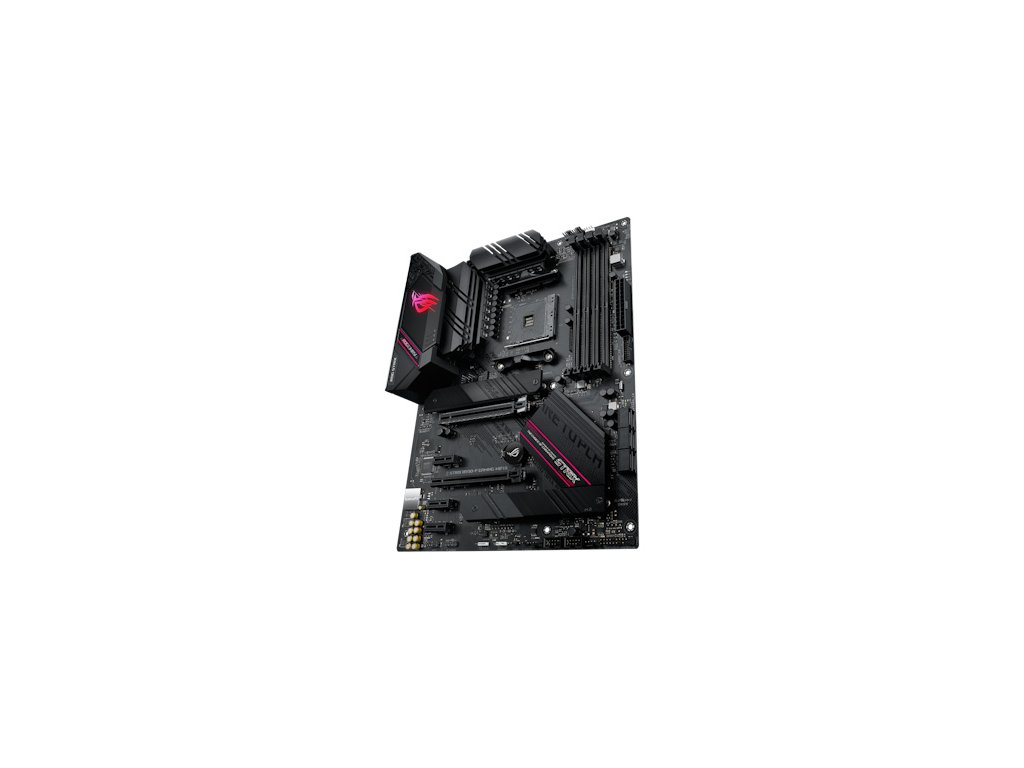

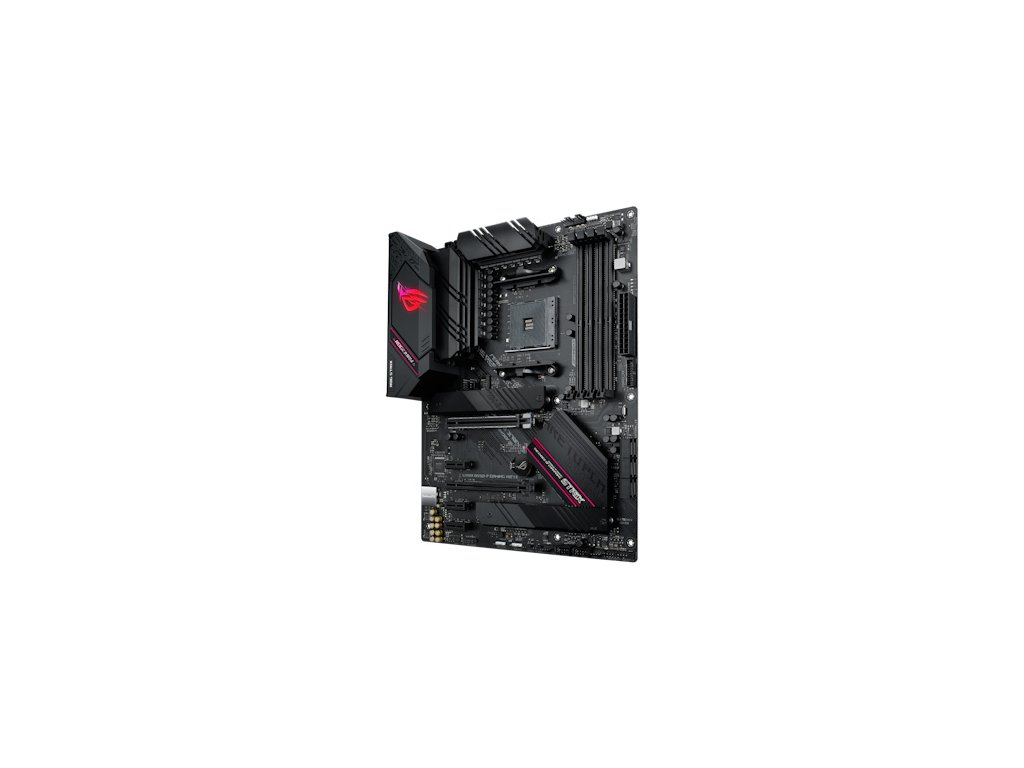

ASUS ROG STRIX B550-F GAMING WI-FI herná základná doska

Chipset: B550

Rozměrový formát: ATX (30.5cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series

Pozice na paměti: 4 x DIMM,DDR4
Podpora pro paměti:

• AMD Ryzen 5000 and 3000 Series Desktop Procesors
• DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
• AMD Ryzen 5000 and 4000 G-Series Processors
• DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz,

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC

Zvuková karta: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Síťová karta:

• 1 x Intel I225-V 2.5Gb Ethernet
• WI-FI 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Bluetooth v5.2

Rozšiřující sloty:

• 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 3 x PCIe 3.0 x1 slots

RAID řadič: RAID 0, 1, 10

SATA: 6 x SATA 6Gb/s ports

M.2: 2 x M.2 slots (Key M)

USB:

• Interní:
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Externí:
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports

Interní porty:

• Fan and cooling related
• 1 x 4-Pin AIO_Pump header
• 1 x 4-Pin CPU fan header
• 1 x 4-Pin CPU_OPT fan header
• 3 x 4-Pin Chassis fan headers
• Power related
• 1 x 24-pin main power connector
• 1 x 8-pin +12V power connector
• 1 x 4-pin +12V power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Addressable Gen 2 header
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front panel audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal sensor header
• 1 x Thunderbolt header

Externí porty:

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• 1 x Wi-Fi Modul
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Intel I225-V 2.5G Ethernet
• 1 x Optical S/PDIF out
• 5 x Audio jacks
• 1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
