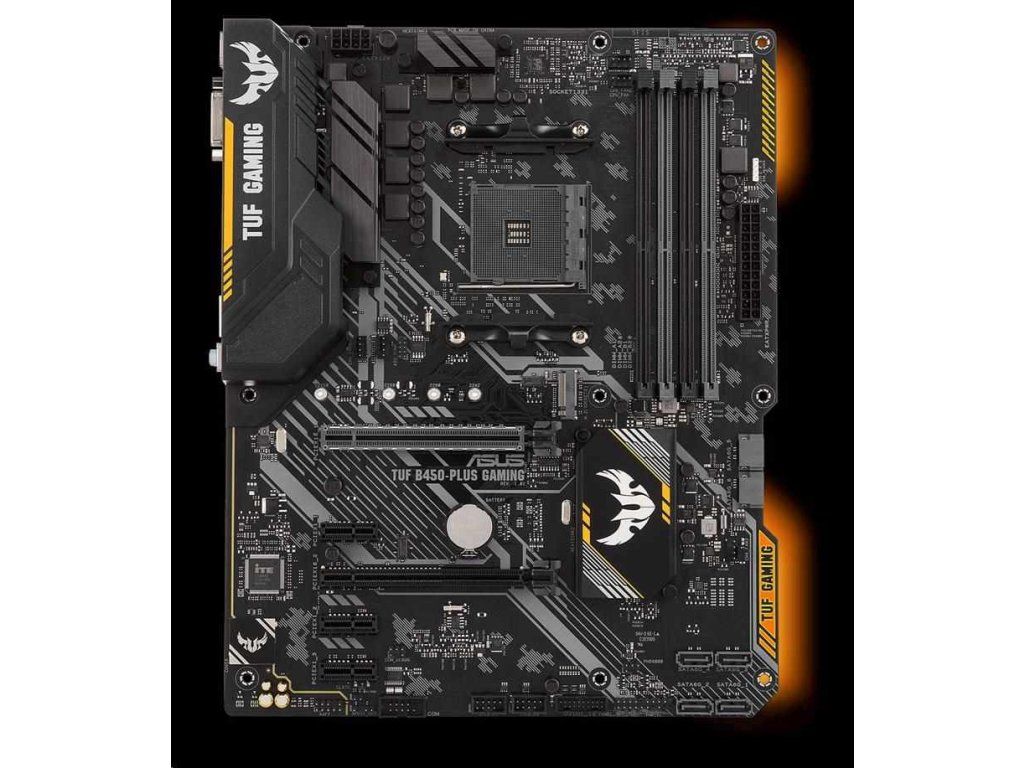

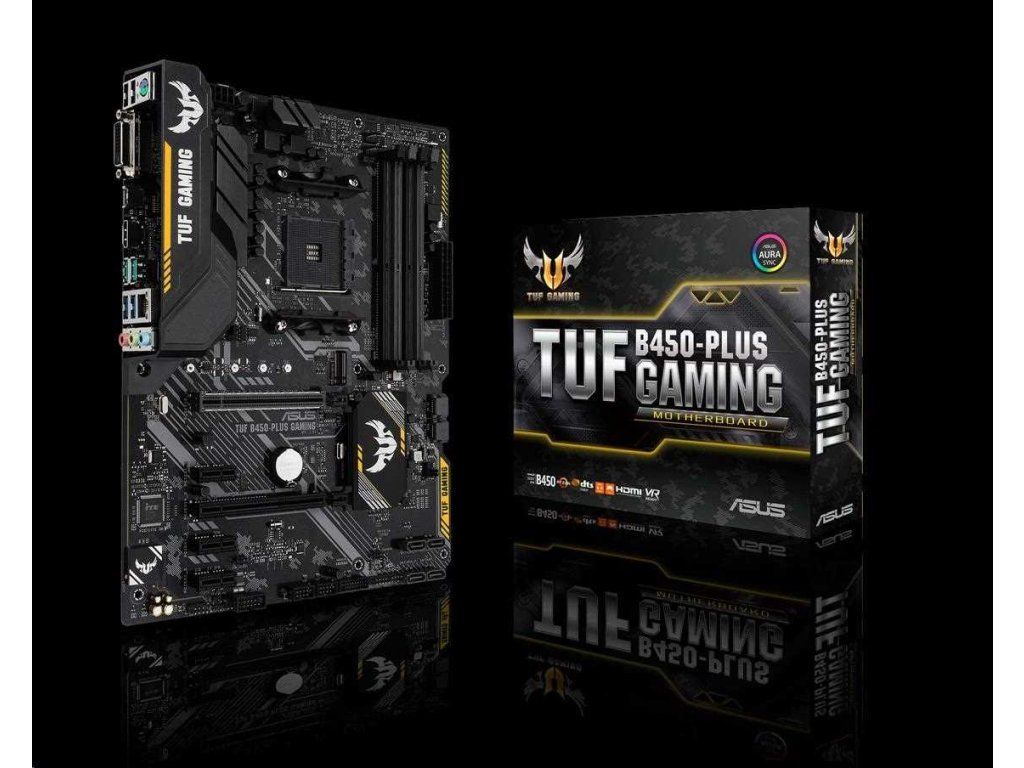

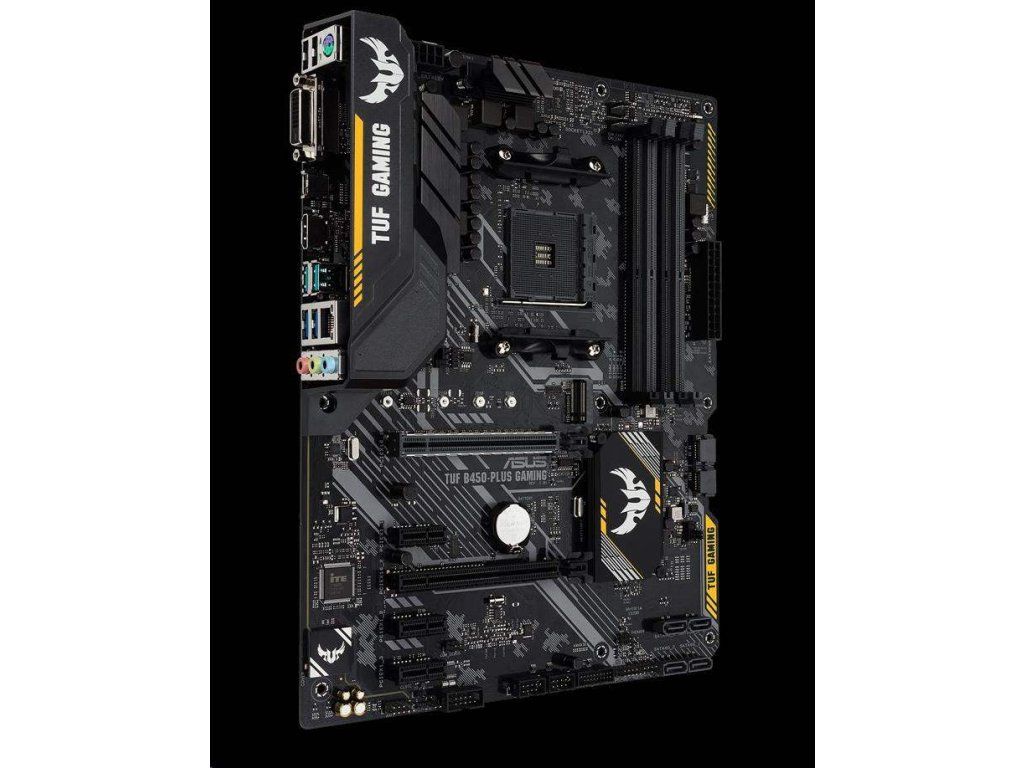

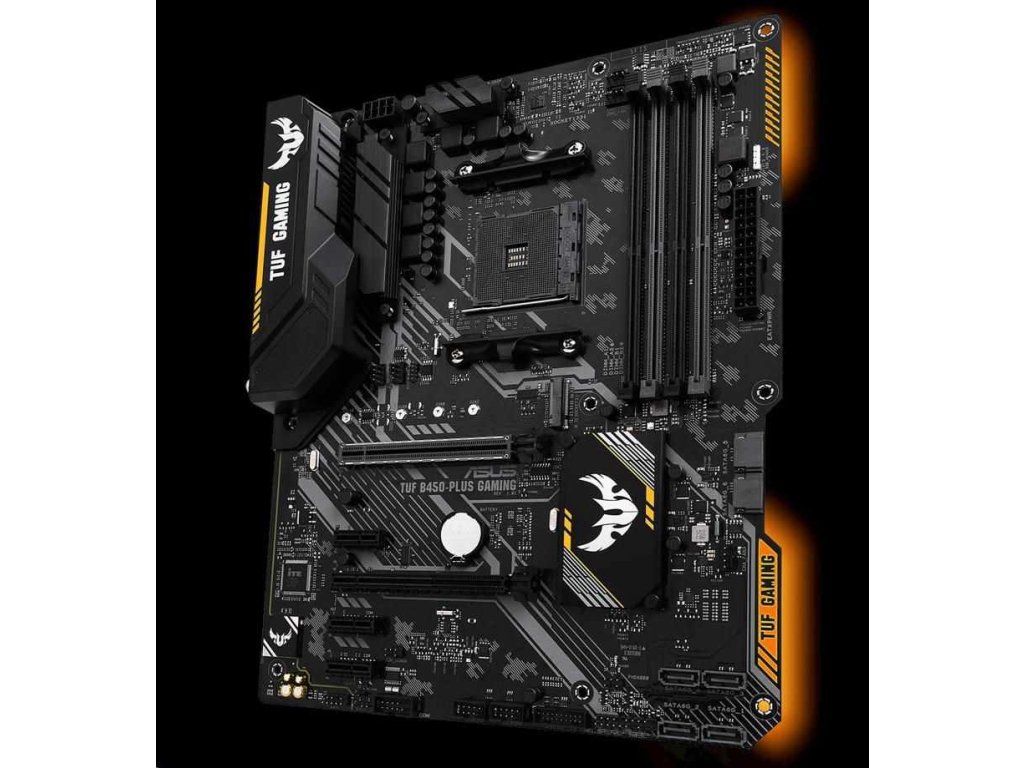

ASUS TUF GAMING B450-PLUS II základná doska

Podrobný popis

Chipset: AMD B450

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)

Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM

Podpora pro paměti: 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU

Grafické výstupy: *Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics/Athlon)

Multi GPU: AMD CrossFireX™ Technology

Zvuková karta: *Realtek® ALC S1200A 8-Channel High Definition Audio CODEC

Síťová karta: *Realtek® L8200A

Rozšiřující sloty: *

3rd/2nd/1st Gen AMD Ryzen™ Processors *1x PCIe 3.0/2.0 x16 (x16 mode) *

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0/2.0 x16 (x8 mode) *

AMD Athlon™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0/2.0 x16 (x4 mode) *

AMD B450 chipset *1x PCIe 2.0 x16 (max at x4 mode) *3x PCIe 2.0 x1

RAID řadič: 0, 1, 10

SATA: *6x SATA 6Gb/s ports

M.2: *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)

USB: *

zadní USB porty ( celkem 8 ) *2x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x ) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *

přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s)

Interní porty: *1x CPU Fan connector(s) (1 x 4 -pin) *3x Chassis Fan connector(s) (3 x 4 -pin) *1x AIO_PUMP connector (1 x 4 -pin) *2x Aura RGB Strip Header *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) *1x SPI TPM header *6x SATA 6Gb/s connector(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x Front panel audio connector(s) (AAFP) *1x System panel(s) *1x Clear CMOS jumper(s) *1x COM port header

Externí porty: *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A) *4x USB 3.2 Gen 1 Type-A *2x USB 2.0 *5x Audio jack(s) *1x BIOS FlashBack™ Button(s)

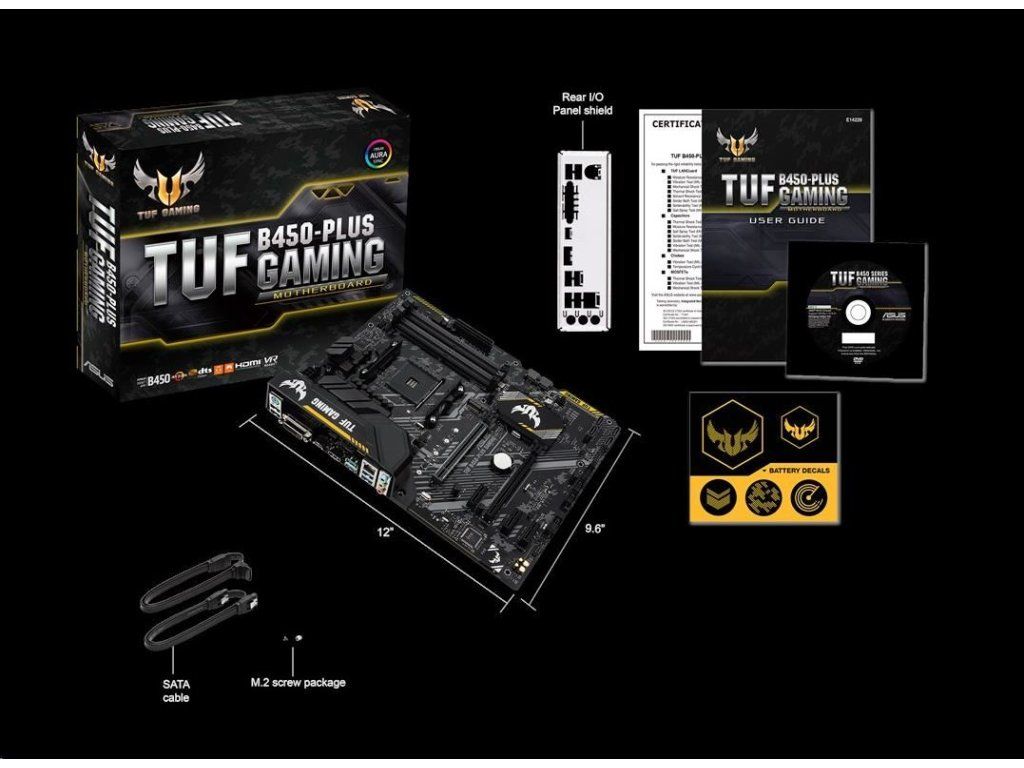

Obsah balení: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x M.2 Screw Package *1x Supporting DVD *1x TUF GAMING Sticker *1x TUF Certification card(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards/TUF-GAMING-B450-PLUS-II https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
