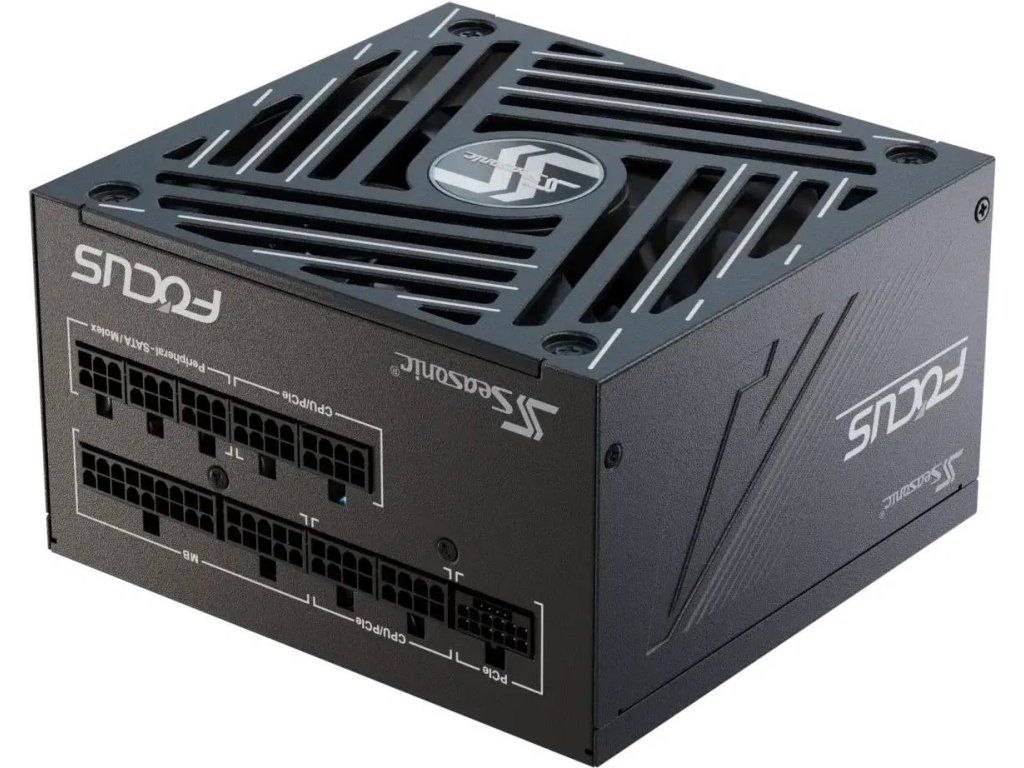

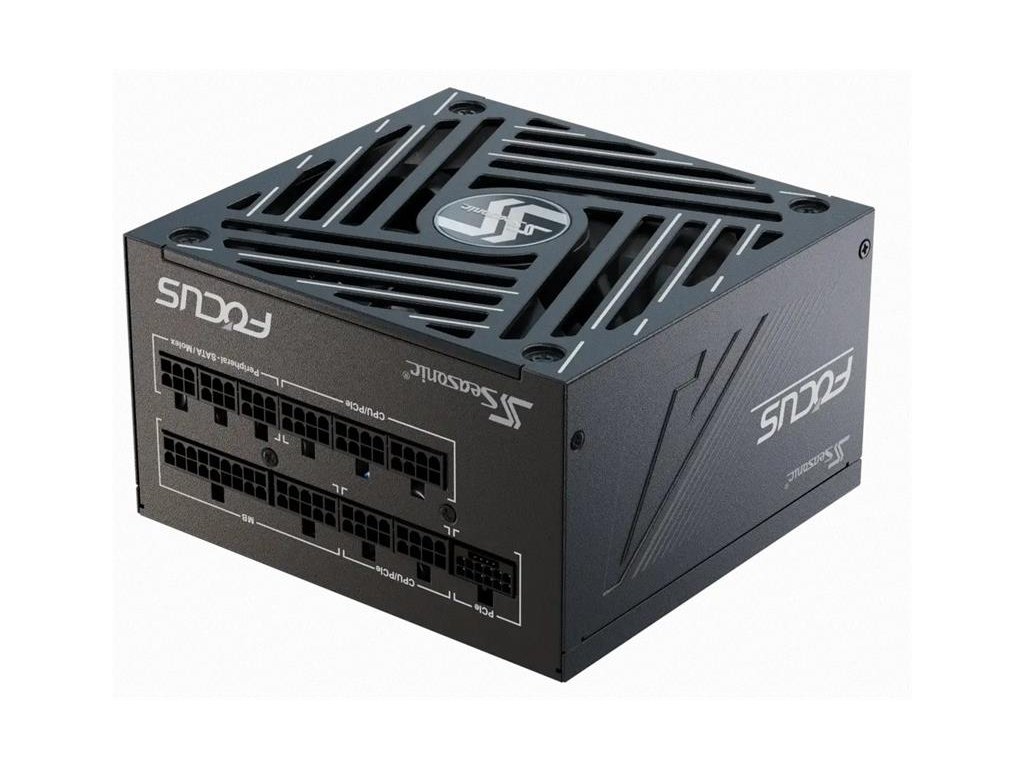

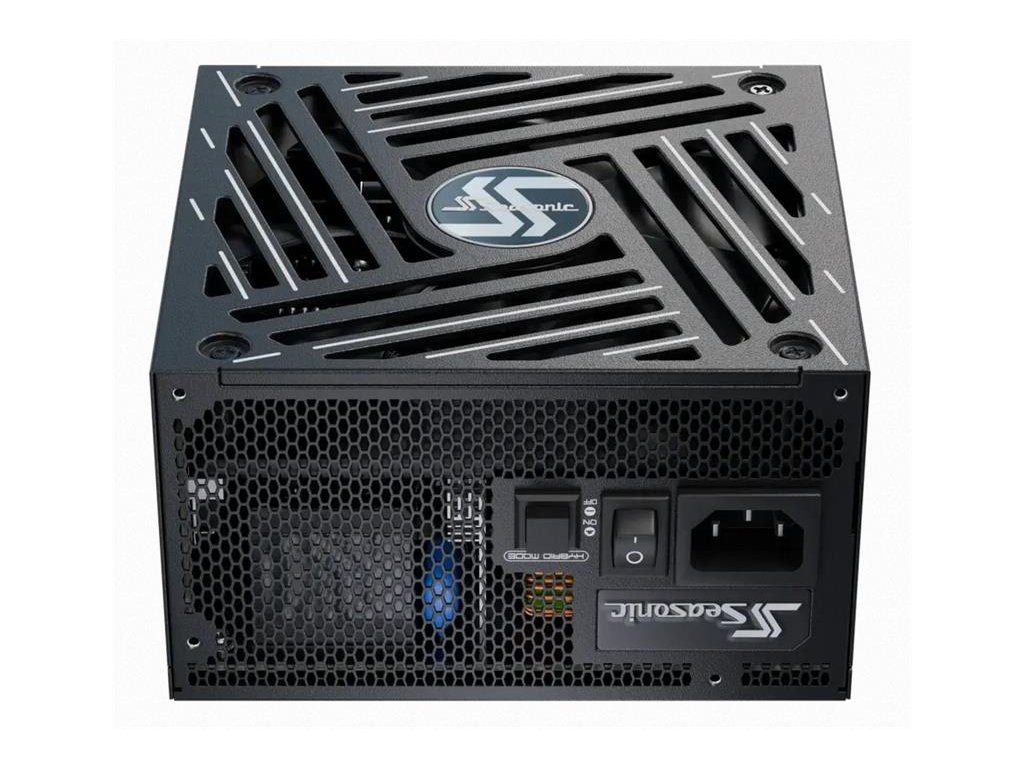

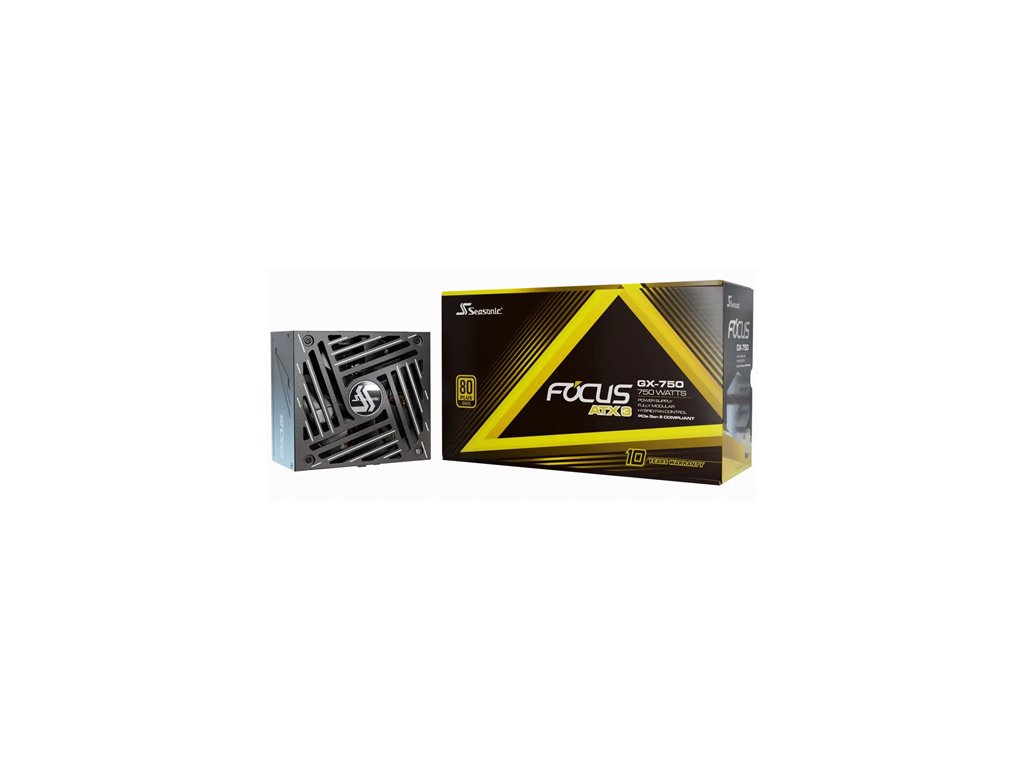

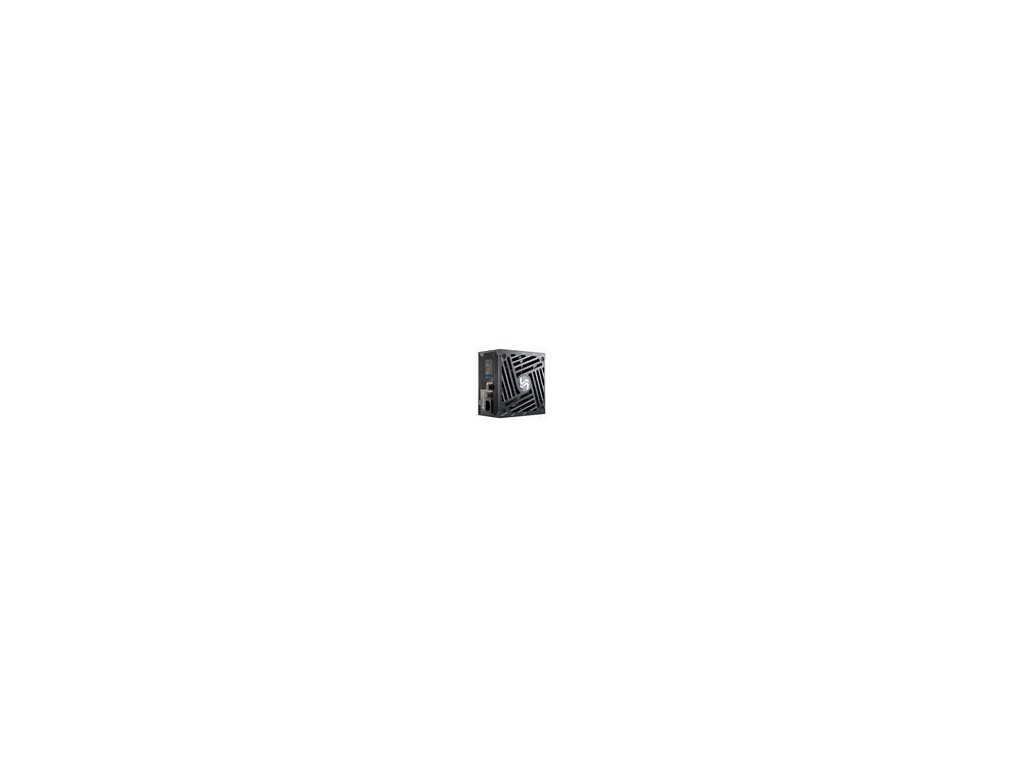

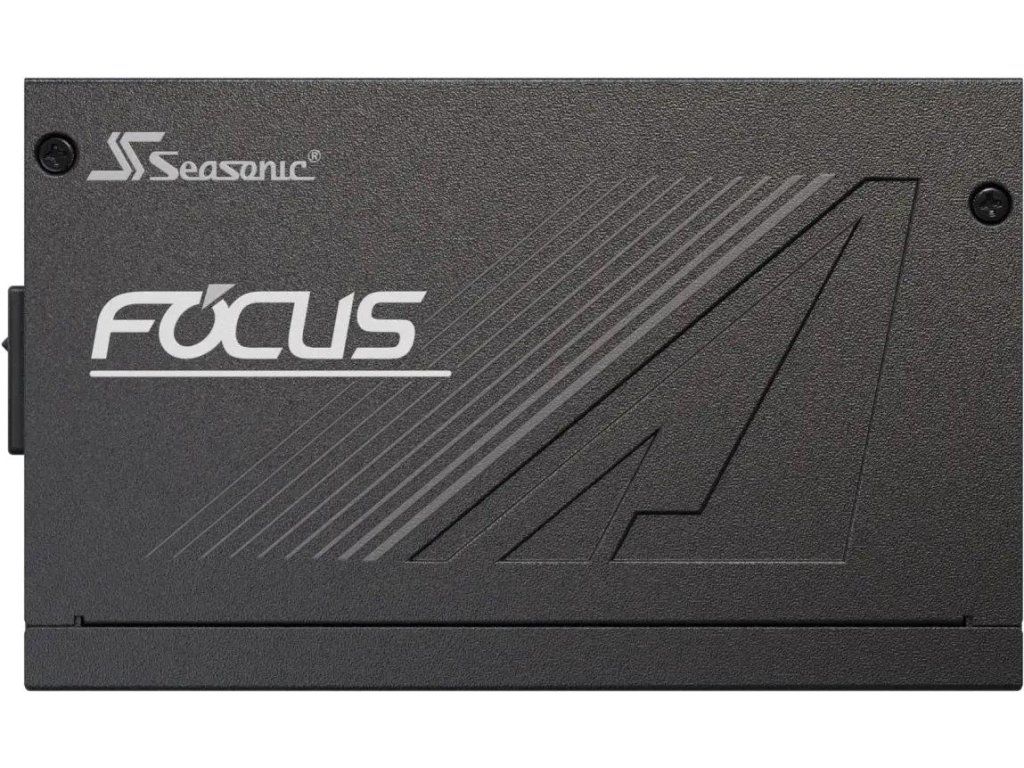

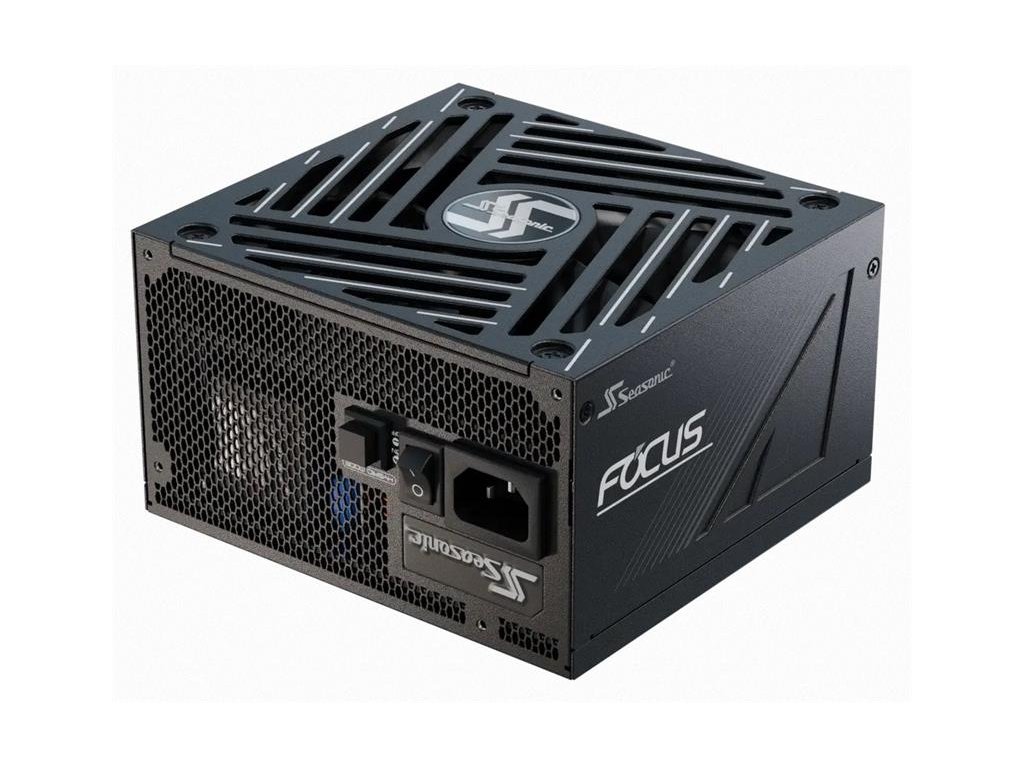

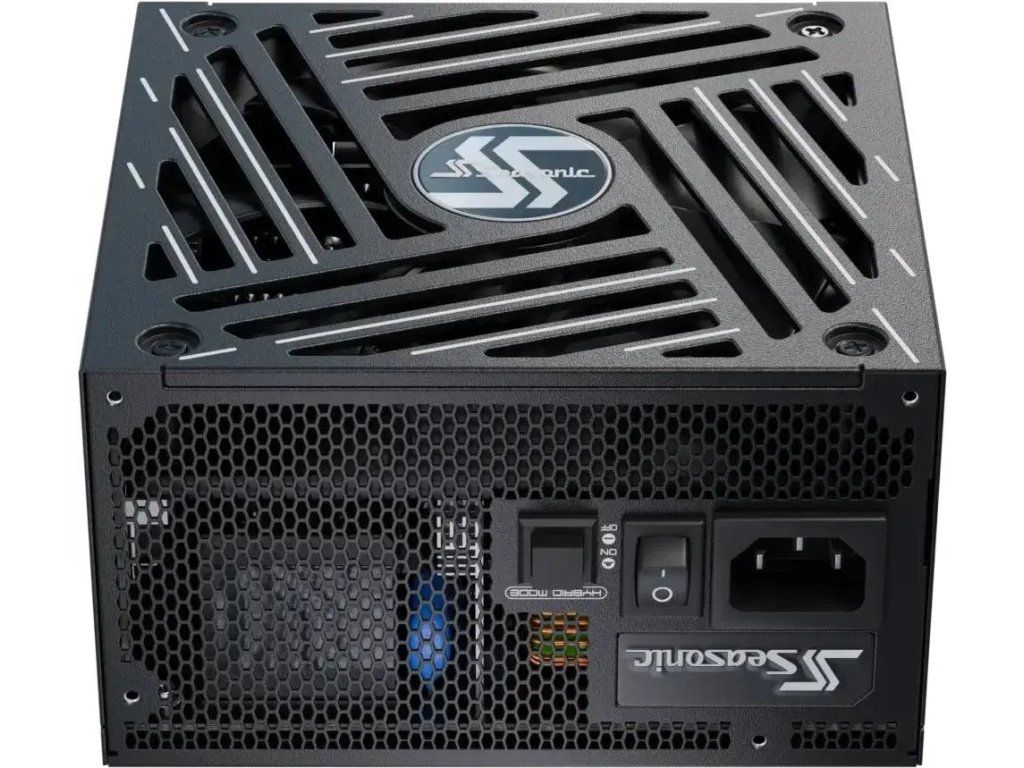

SEASONIC zdroj 750W FOCUS GX-750 (ATX 3) - NEW MODEL

Podrobný popis

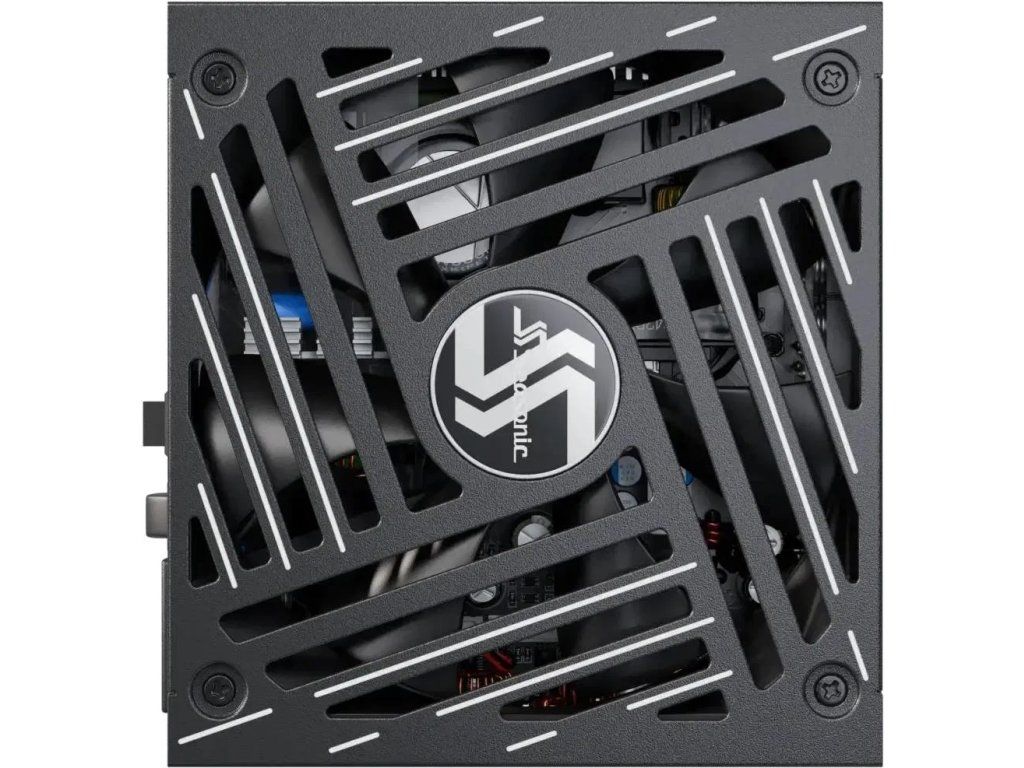

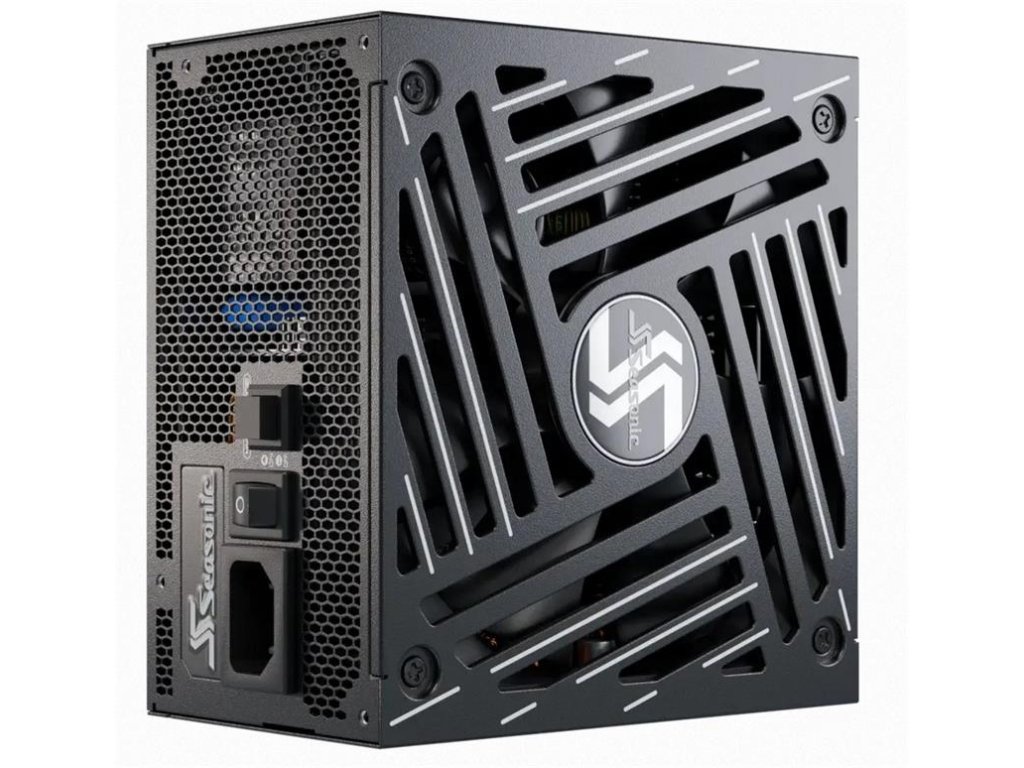

Výkon zdroje (ve W):750 FOCUS GX ATX 3 Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2×6 cable, and our new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market. Technical Specifications 80PLUS® Gold Cybenetics Efficiency Level Gold Cybenetics Noise Level A- Form Factor ATX/EPS Fan Information Fan Size 135 mm Fan Control Digital Hybrid Fan Control Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Individual Black Cables with Braided Pattern Electrical Features Operating Temperature 0 - 50 °C MTBF @ 25 °C, excl. fan 100,000 hours AC Input Full Range Protection OCP, OPP, OTP, OVP, SCP, UVP Safety and Environmental Safety and EMC CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC Environmental Compliance Energy Star, ErP Lot 6, REACH, RoHS, WEEE Warranty 10 Years Power Output AC Input 100 V - 240 V 10 - 5 A 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 20 A 20 A 62 A 0.3 A 3 A 100 W 744 W 3.6 W 15 W Total continuous power 750 W Specifications may change without prior notice.
